Little Giant 5-MD-HC 115 Volt, 1/8 HP, 1050 GPH Magnetic Drive Highly Corrosive Chemical Transfer Pump, 6-Ft. Cord with Plug, Black, 583603

flash sale iconLimited Time Sale
Until the end
14
23
57

US$431.75 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$287.83
quantity

Product details

Management number 210142586 Release Date 2026/04/02 List Price US$287.83 Model Number 210142586
Category

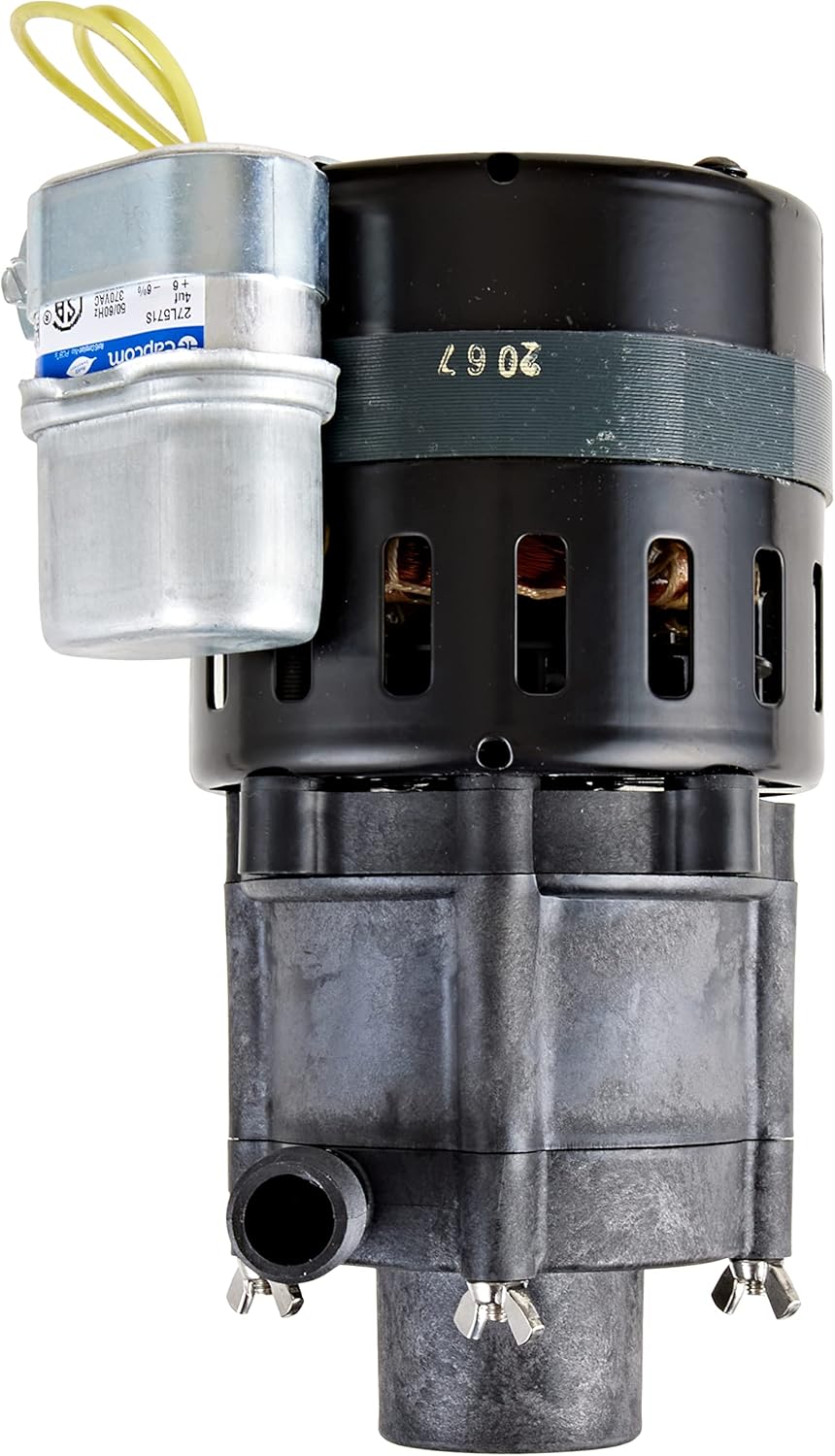

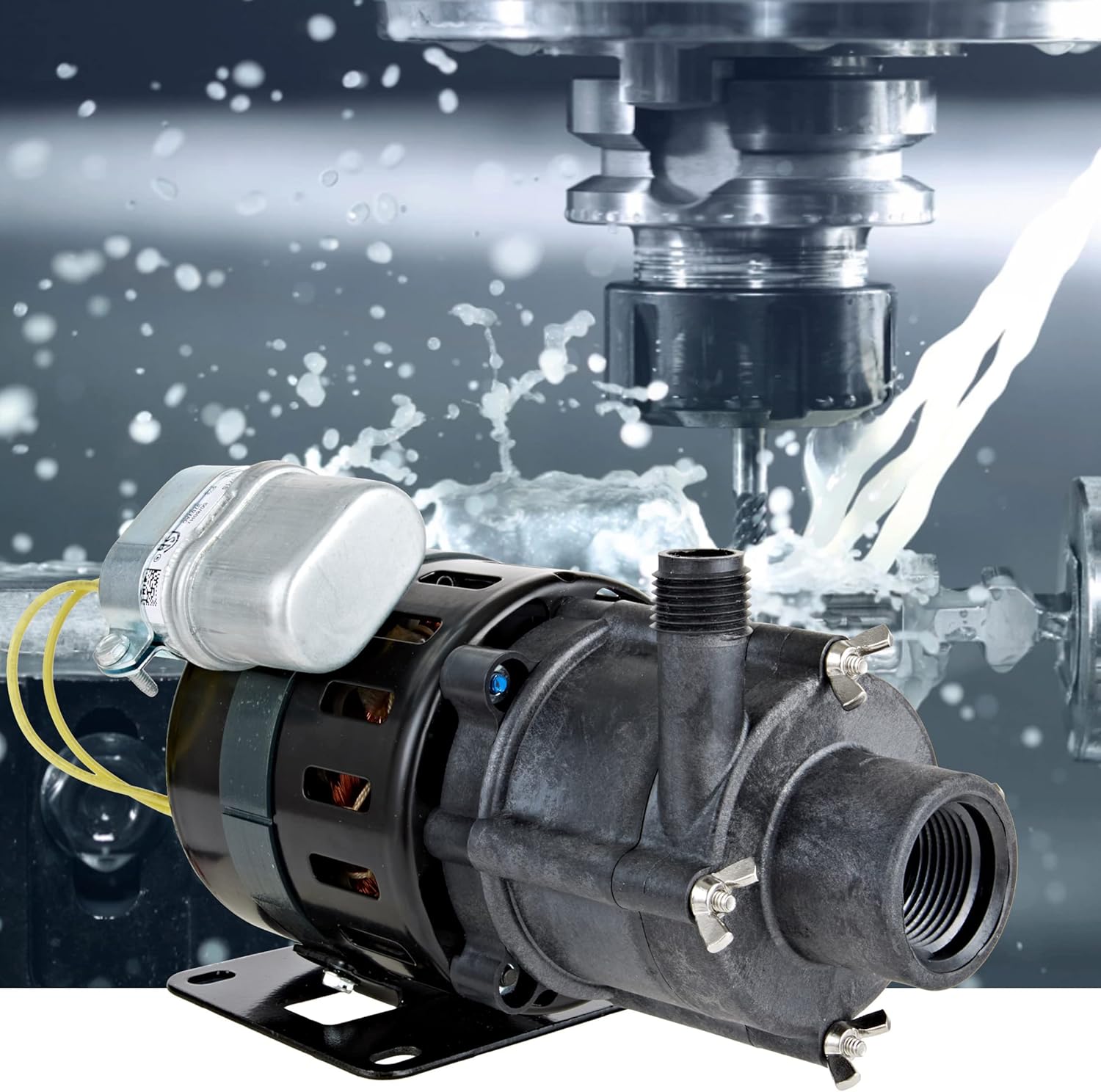

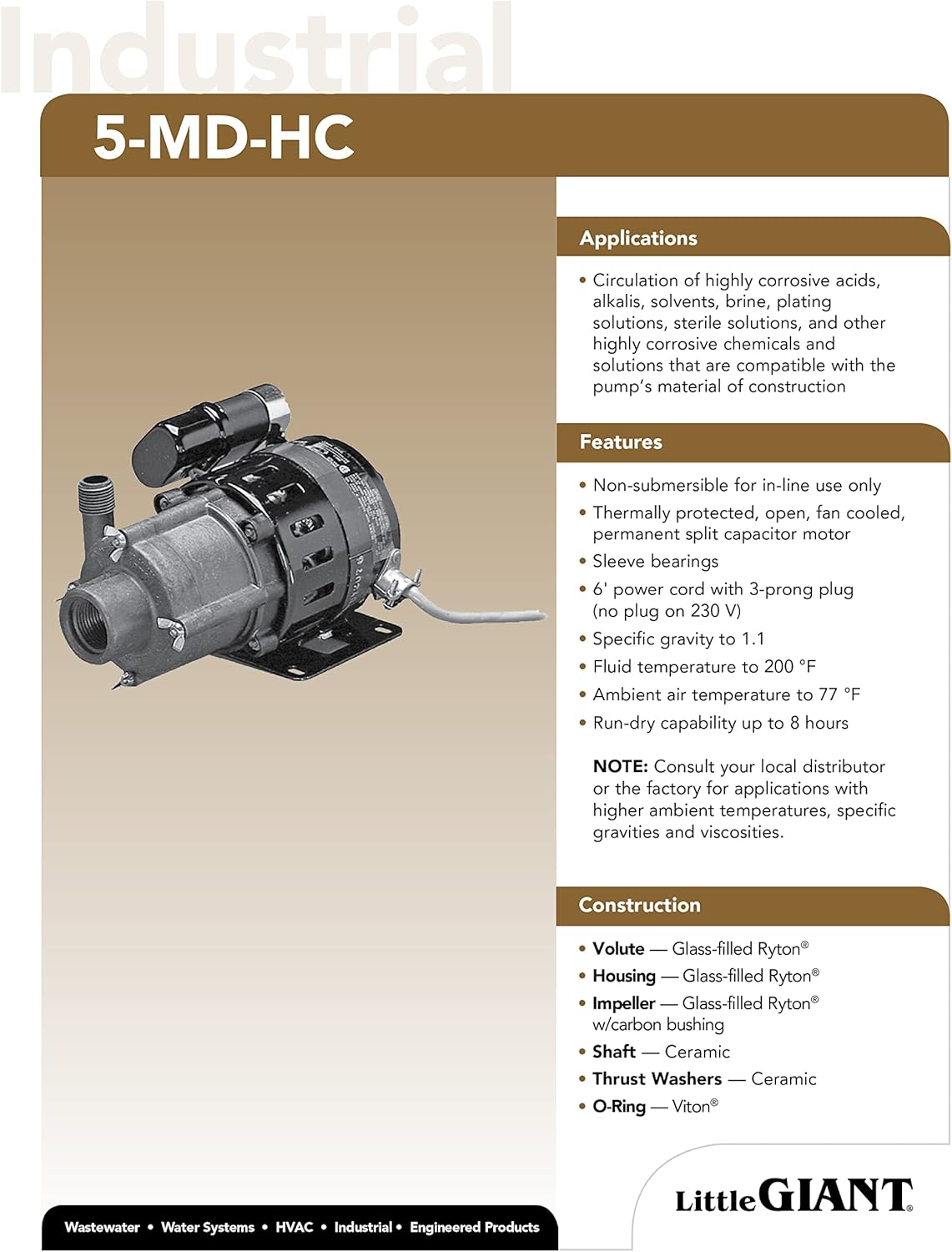

The Little Giant 115 Volt, 1/8 HP 5-MD-HC non-submersible magnetic drive pump is sued to circulate highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions (1.1 specific gravity). Its volute, magnet housing and impeller are glass-filled polyphenylene sulfide for excellent chemical resistance. This pump utilizes pure carbon bushings to enable the pump to run dry for up to 8 hours at a time. This pump delivers up to 1050 GPH at 0-ft. lift and comes with a 6-ft. power cord with plug.

  • APPLICATIONS: designed for in-line, non-submersible use to circulate highly corrosive acids, alkalis, solvents, brine, plating and sterile solutions, and other highly corrosive chemicals/solutions
  • EXCELLENT CHEMICAL RESISTANCE: leak-proof, seal-less magnetic drive; volute, magnet housing and impellers are glass-filled polyphenylene sulfide; FKM O-ring; ceramic shaft and thrust washers
  • EASY MAINTENANCE: pumping heads are easily rotated for cleaning or servicing with no special tools required
  • MOTOR SPECIFICATIONS: 115 Volt, 50/60 Hz, 2.0 Amps, 240 Watts, Thermally Protected, CSA component recognized in the USA and Canada
  • PUMP SPECIFICATIONS: 1050 GPH at 0-ft. Lift, 27.5-ft. shutoff; maximum liquid temperature 200°F; 1/2-inch MNPT discharge; 1-inch FNPT intake; 6-ft. cord with plug
UPC 010121836037
Color Black
Voltage 115 Volts
Flow Rate 17.5 Gallons Per Minute
Brand Name Little Giant
Unit Count 1.0 Count
Item Weight 9 Pounds
Manufacturer Franklin Electric Co., Inc.
Model Number 583603
Power Source Corded Electric
Material Type Ceramic, Fluoroelastomer (FKM), polyphenylene sulfide
Product Style 115V, 1050 GPH, With Plug
Item Type Name 5-MD-HC 115 Volt, 1/8 HP, 1050 GPH Magnetic Drive Highly Corrosive Chemical Transfer Pump, 6-Ft. Cord with Plug
Included Components installation manual, pump with 6-ft. cord with plug
Maximum Lifting Height 27.5 Feet
Item Dimensions L x W x H 8.81"L x 5.41"W x 5.54"H
Manufacturer Warranty Description 1 year manufacturer
